Products > Heating Elements

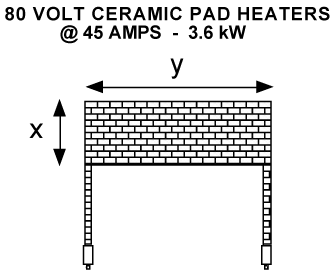

| Dimensions in inches | ||
| parte no | 'y' | 'X' |
| HE-380 | 3 | 39 |
| HE-480 | 4 | 29 |
| HE-680 | 6 | 19.5 |
| HE-880 | 8 | 14.5 |
| HE-1080 | 10 | 12.5 |
| HE-1280 | 12 | 9.75 |
| HE-1580 | 15 | 8 |
| HE-1880 | 18 | 6.5 |
| HE-2180 | 21 | 5.75 |
| HE-2480 | 24 | 5 |
| HE-2980 | 29 | 4 |
| HE-3680 | 36 | 3.25 |
| HE-S80 | 1 | 132 |
| CERAMIC HEATER WITH PAD REQUIREMENTS PIPE SIZE | ||||
| INFORMATION TUBE | HEATERS necessary for heating | |||
| Tube | Diameter (OD) | Circumference (inches) | Individual heaters | Multiple heaters |
| 2" | 2.375 | 7.462 | (1) HE-680 | |
| 2-1/2" | 2.875 | 9.033 | (1) HE-880 | |
| 3" | 3.50 | 10.997 | (1) HE-1080 | |
| 4" | 4.50 | 14.139 | (1) HE-1580, o | (2) HE-880 de |
| 5" | 5.563 | 17.478 | (1) HE-1880 o | (1) HE-1080 y (1) HE-880 |
| 6" | 6.625 | 20.815 | (1) HE-2180 o | (2) HE-1080, o (1)HE-1280 y (1) HE-880 |
| 8" | 8.625 | 27.099 | (1) HE-1280 y (1) HE-1580, o(2) HE-880 y de (1) HE-1080-o(2) HE-1080y de (1) HE-880 | |
| 10" | 10.75 | 33.776 | (3) HE-1080, o(2) HE-1080's & (1)HE-1280 | |
| 12" | 12.75 | 40.060 | (1)HE-1080 y (2) HE-1580, o(2) HE-1280 y (1) HE-1580 | |
